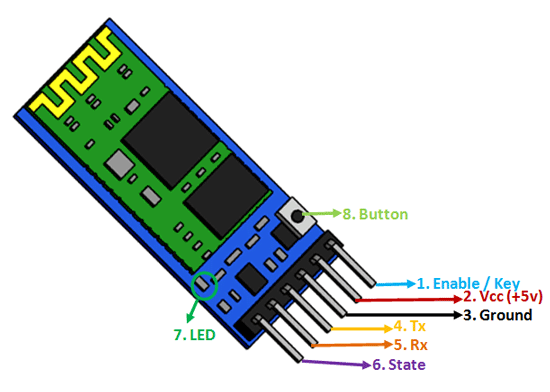

Product details of HC-05 Bluetooth Serial Module integrated Bluetooth serial pass-through module HC 05 master-slave 6pin
- 1. It is HC-05.2. Use the CSR mainstream bluetooth chip, bluetooth V2.0 protocol standards.3. Module working voltage 3.3 V.4. Potter default rate of 9600, the user can be set up.5. The core module size : 28 mm x 15 mm x 2.35 mm.6. Working current: matching for 30 MA, matching the communication for 8 MA.7. Dormancy current: no dormancy.8. Used for GPS navigation system, water and electricity gas meter reading system.9. With computer and bluetooth bluetooth adapter, PDA, seamless connection equipment
Note:It’s HC-05 Bluetooth module Slaveand master two in one module
this module can be set to a transmitter or receiver, transmitter could pairing with receiver , receiver and receiver or transmitter and transmitter can’t communication between, receiver could pairing with computers and cell phone bluetooth , when buying, the default for receiver.
1. It is HC-05.
2. Use the CSR mainstream bluetooth chip, bluetooth V2.0 protocol standards.
3. Module working voltage 3.3 V.
4. Potter default rate of 9600, the user can be set up.
5. The core module size : 28 mm x 15 mm x 2.35 mm.
6. Working current: matching for 30 MA, matching the communication for 8 MA.
7. Dormancy current: no dormancy.
8. Used for GPS navigation system, water and electricity gas meter reading system.
9. With computer and bluetooth bluetooth adapter, PDA, seamless connection equipment
